EPS im Wohnhaus

EPS. Best pin system

Security for generations

EPS reliably protects residential properties and is also suitable for clearly structured master key systems. Consequently, EPS is a frequently used access system in office buildings, catering or residential properties. EPS is the successful result of the continuous development of tried and tested EVVA pin systems. High levels of user convenience and the system's durability make the system the best pin system.

E

Your EPS advantages

  • One key fits all
  • For master key systems with clear structures
  • Quick assembly thanks to modular design
  • Patent protection until 2027

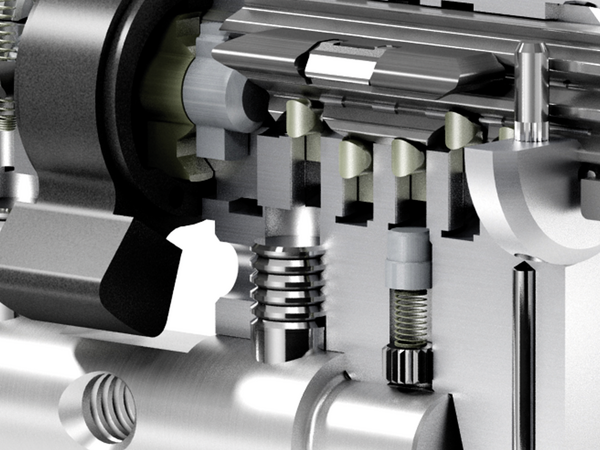

EPS Schließzylinder Innenleben

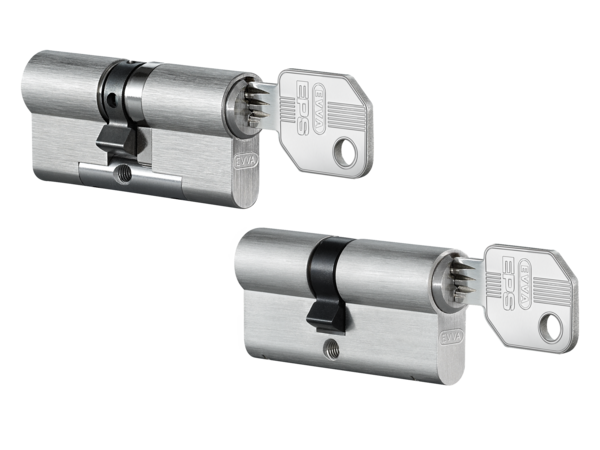

The EPS cylinder

EPS is a spring-loaded pin system with 5 or 6 active, spring-loaded scanning elements and offers up to 20 additional side codings. The keys' integrated manipulation control within the cylinder and the dual-action locking pins offer a high level of security.

The EPS cylinder is available in compact and modular design.

International certifications:

The international EPS certifications and country-specific models mean that the products can be used throughout Europe:

EPS Normen
EPS Schlüssel

The EPS key

The EPS key is a strong nickel silver key with large key cross-section. This makes it wear-resistant and long-lasting. The distinctive side coding and associated, integrated manipulation control make it even more secure. Thanks to the robust length profile and optimised lower milling grooves, the EPS key is particularly easy to insert.

EPS-M with international brand protection

The international brand can be identified by the EVVA logo on the key's profile. EVVA can take legal action against any kind of brand infringements.

Markenschutz bei EPS-M
EPS Designschlüssel verschiedene Farben

The EPS design key

The EPS key is optionally available in the colours black, red, blue, white, yellow and green. The colour coding helps to differentiate between keys.

Hybrid cylinder

Electronic systems combined with mechanical systems

  • Mechanical and electronic systems combined in a single cylinder
  • Suitable for combination with all current, modular, mechanical systems
  • Quick and simple conversion of mechanical systems
  • Electronic, individual profile with combi key
Kernziehschutz, Aufbohrschutz

Picking and scanning protection

Thanks to the picking protection scanning positions within the cylinder cannot be identified. Therefore the EPS cylinder is harder to open with specialist tools. In the compact design, the EPS cylinder is protected from picking and scanning thanks to specially shaped pins. In the SYMO version, locking pins feature additional hidden gates in order to grant higher protection.

Drilling protection

Hardened steel elements are standard for protection against drilling. The EPS cylinder is also available with enhanced drilling protection thanks to hardened metal elements.

Optional pulling protection

Special hard metal pins offer resistance against pulling the cylinder and plug in accordance with standards.

Take the extra security step by the EVVA security card.

Key copies, additional cylinders and lock charts are available from authorised EVVA Partners, providing the relevant proof of legitimacy only, i.e. the EVVA security card.

Patent protection until 2027

All EVVA products are only available at authorised EVVA Partners. EVVA is authorised to take legal action against any kind of patent infringements. The patent protection period for the EPS is valid until 2027.

Technical protection thanks to the required specialist expertise

The technical features of an EPS key require extensive specialist knowledge and specialist machinery during production. Illgeal fabrication is only possible with a great deal of expense.

Sicherungskarte
Pärchen im Eingangsbereich

Reliable security for a host of applications

Be it in office buildings, schools or residential complexes, EPS works well in clearly structured master key systems and provides residents and staff with maximum master key system convenience. All doors where users have been assigned access authorisations can be accessed with one single key: Main entrance, letter box, basement and the own front door. Facility management companies will benefit from added control and less administrative tasks.

EPS References

Here is a selection of successful projects.
