AirKey. Simply smart
Fully dynamic securityAirKey makes your life easier and gives you greater independence. With AirKey you can open doors with your smartphone, send keys via SMS and easily organise your entire access control system. Consequently, AirKey offers you maximum freedom and maximum security – professionally or privately.

AirKey cylinder
AirKey cylinders are suitable for indoor and outdoor use. They represent the central AirKey system security product featuring plug-pulling and drilling protection, rotary damper and an integrated secure element to guarantee secure data archiving. Thanks to its modular design the cylinder is easy to install and adapt in length.
Hybrid cylinder
Electronic systems combined with mechanical systems
- Mechanical and electronic systems combined in a single cylinder
- Suitable for combination with all current, modular, mechanical systems
- Quick and simple conversion of mechanical systems
- Electronic, individual profile with combi key

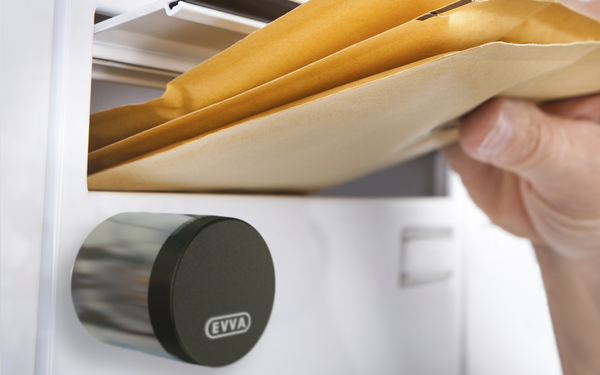

AirKey cam lock
The AirKey cam lock is used in post boxes, filing cabinets and apothecary cabinets and adds the finishing touch to any AirKey system.
AirKey wall reader
The AirKey wall reader can be used indoors and outdoors. In combination with the wall reader control unit, it is suitable for controlling electronic locking components in doors of all kinds, e.g. granting access to sliding and swinging doors, lifts and electronic separation systems.


AirKey padlock
The AirKey padlock is the ideal supplement for the AirKey system. It flexibly protects server cabinets, delivery boxes, self-storage warehousing space or even barriers. Thanks to IP65 protection rating the padlock is suitable for indoor and outdoor use.
AirKey identification media
Along with the smartphone, you can also use key tags, AirKey-combi-whristbands, combi keys or cards as access media.

![[Translate to UK:] Onlineverwaltung auf Laptop](/fileadmin/user_upload/Testbilder/Produkte/AirKey/AirKey_Onlineverwaltung.png)
AirKey online administration
Online administration is the control centre to create new keys or block existing keys. It is free of charge, quickly set up and easy to operate.

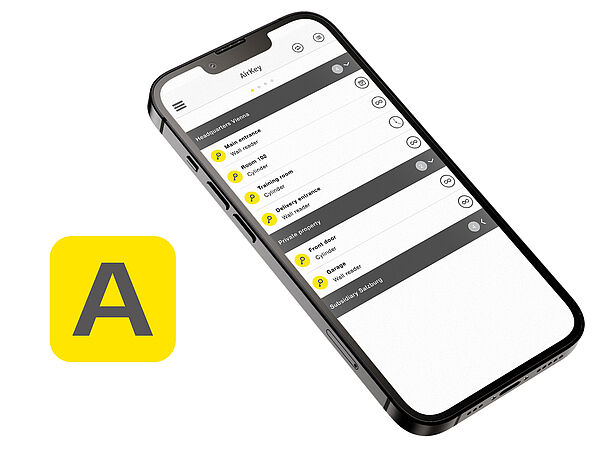

AirKey app
The free Airkey app is intuitive and suitable for iPhone (from iOS 10) and Android 5.0. It turns your smartphone into one or more keys for different systems. You also create and update other access media with the AirKey app, such as cards or tags. The optional pin code provides additional protection for the app.
![[Translate to UK:] AirKey App auf Smartphone](/fileadmin/user_upload/Testbilder/Produkte/AirKey/AirKey_APP.png)
The AirKey Cloud Interface
With a REST interface you can control certain AirKey Online Administration functions directly from your own software.
In order to establish communication between the AirKey Online Administration and your software, your software needs to be updated. The best person to do this is your software integrator or programmer. In order to activate the interface, you are required to make a single payment of 350 KeyCredits. Do this by using the KeyCredits AirKey Cloud Interface Card.
You can find application examples, handbooks, API documentation and the DEMO Tool here.

Service & Tools
API documentation
In the API documentation you will find all of the functions for the AirKey Online Adminstration that you can control with the AirKey Cloud Interface, as well as all the information you need to program your connection to the interface.
DEMO Tool
Cloud Interface Testing
Our Cloud Interface DEMO Tool allows you to try out the first few interface functions. For instance, you can try out the process for sending keys free of charge and experience the AirKey Online Administration integrated into your third-party software.


Cloud Interface Trainings
EVVA Academy
The EVVA Academy holds regular training courses on our products. Learn everything about the AirKey Cloud Interface in a relaxed atmosphere.
![[Translate to UK:] KeyCredits Karte](/fileadmin/user_upload/Testbilder/Produkte/AirKey/KeyCredits.png)
KeyCredits
KeyCredits are required to create or change access authorisations. Consequently you only pay for what you actually need. Quantity or time-based credits are available. As a rule, unlocking doors and deleting access authorisations is free of charge.
![[Translate to UK:] Europäische Datenschutz Grundverordung](/fileadmin/_processed_/9/7/csm_AirKey_Datenschutz_b4755fbb82.png)
AirKey meets EU Data Protection Directive
AirKey was developed as the most data-protection-friendly access system together with the certified data protection expert Dr Christof Tschohl. Please do not hesitate to contact us if you have any questions about details.

As secure as online banking
- All data is stored anonymously with repeated backups in case of power failures on EVVA servers, meeting strict Austrian security standards.
- This central administration protects users' digital keys much better than would be possible with individual protective measures.
- Secure data transfers between your Internet browser and the EVVA server takes place via a protected https connection, used also in online banking.
- The highly secure ECDSA and AES encryption processes additionally protect the AirKey system and its components.
- AirKey meets strict EU Data Protection Directive guidelines
Security products and accessories
- Certified Secure Elements (=highly secure memory elements that actively encrypt and decrypt) in AirKey components and identification media set the new security benchmark for electronic keying systems.
- An event log for the last 1,000 access events ensures seamless transparency.
- AirKey cylinders are equipped with drilling protection, plug pulling protection, rotary damper and rated break point on the outside thumb turn.
- AirKey access media exclusively use highly secure NFC smart cards.
![[Translate to UK:] Sichere AirKey Produkte](/fileadmin/user_upload/Testbilder/Produkte/AirKey/Sichere_Produkte.png)
![[Translate to UK:] Frau mit Smartphone benutzt AirKey](/fileadmin/user_upload/Testbilder/Produkte/AirKey/Sicheres_Smartphone.png)
Secure smartphones
- The AirKey app can also be secured with an individual PIN code.
- If you lose your smartphone, access authorisations can be deleted immediately in the online administration.
- Effective protective mechanism with installed encryption process.
![[Translate to UK:] Nutzer der Onlineverwaltung](/fileadmin/user_upload/Testbilder/Produkte/AirKey/AirKey_bietet_Flexibilitaet.png)
Smart security for more flexibility
AirKey provides flexibility, independence and a simple application. Most of all mobile service providers, such as community nurses or maintenance engineers operating throughout several infrastructure facilities and companies with a number of branches benefit from flexible key handovers directly to smartphones by text message (SMS).
Driver:
Codierstation: HID OMNIKEY 5421
Data sheets:
FAQs AirKey
AirKey is easy to install. Please note our installation videos. Your partner is happy to advise you during installation.
A special tool is required for installation and removal. It is designed so the outside thumb turn cannot be removed by unauthorised persons. This special tool is available from your EVVA Partner.
Please register once in AirKey online administration. Then simply use your login to access the online administration.
Internet access and a browser are enough to set up and manage your locking system online.
The AirKey app is available from the Apple App Store and the Google Play Store.
- All transferred data is secured as end-to-end data, as per cutting-edge encryption standards. Your data is protected from decryption between the EVVA high security server and the AirKey cylinder.
- The use of certified, secure elements – highly secure memory elements that actively encrypt and decrypt – in the cylinders and in identification media makes AirKey the new security benchmark for electronic locking systems.
- An event log for access events ensures seamless transparency.
- The outside thumb turn is additionally equipped with drilling protection, plug pulling protection and a rotary damper.
AirKey already meets the strict data protection guidelines of the EU data protection directive, coming into effect in May 2018. AirKey was developed as one of the most data-protection-friendly access systems on the market together with certified data protection expert Dr Christof Tschohl. You as users individually decide which data you would like to save for how long.
The battery lasts for up to 30,000 locking cycles (depending on the ambient conditions). The cylinder flashes red if the batteries are low. Please change the battery now. If you use a smartphone to unlock the component, the battery status is also indicated in the online administration and saved as a maintenance task. If you prefer to rely on an emergency power device to also supply your cylinder with power once the battery has died, your locksmith will be able to provide you with one.
Charge your smartphone as quickly as possible. We recommend you nevertheless always carry an identification medium with you in addition to your smartphone, be it a chip on your key ring or an AirKey card.
You can immediately delete any access authorisations you granted in the event that the smartphone is lost. You can immediately authorise an alternative smartphone.
We recommend you immediately block this identification medium in the online administration and transfer this information (blacklist) to your cylinder using your smartphone. You are not on site? Each smartphone with maintenance authorisation to your locking system can also transfer this security information to your cylinder (without operating the component in the process).
You require KeyCredits to create and change unlocking authorisations (keys). Operation itself does not require additional KeyCredits and is thus free of charge.
KeyCredits are available from your EVVA Partner.
AirKey is compatible with Android smartphones and iPhones<br/> NFC (Android > 4.0) | Bluetooth 4.0 (BLE) – Android higher than 6.0 and higher than or equal to iPhone6 iOS 10
NFC and Bluetooth feature identical security standards. You yourself decide which technology to use with your Android smartphone. With iPhones you can use Bluetooth only.
Check whether or not your component features Bluetooth. For this purpose, open the EVVA logo, there should be a red sticker underneath it. If the sticker is white, you need to update the component (hardware). For this purpose, contact your EVVA Partner.
With cylinders it is necessary to replace the electronic outside thumb turn and with wall readers you must replace the glass panel. This can be done within a matter of minutes. For this purpose, use the exchange option in the online administration. Your EVVA Partner is happy to inform you.
AirKey is available from your EVVA Partner.
AirKey is available from your EVVA Partner. Your EVVA Partner will also be happy to help you in planning the project.


EVVA is also a genuine master key system professional able to tackle any levels of complexity in terms of organisational structures and to implement them within the corresponding master key system.
Find out more about our master key systems
